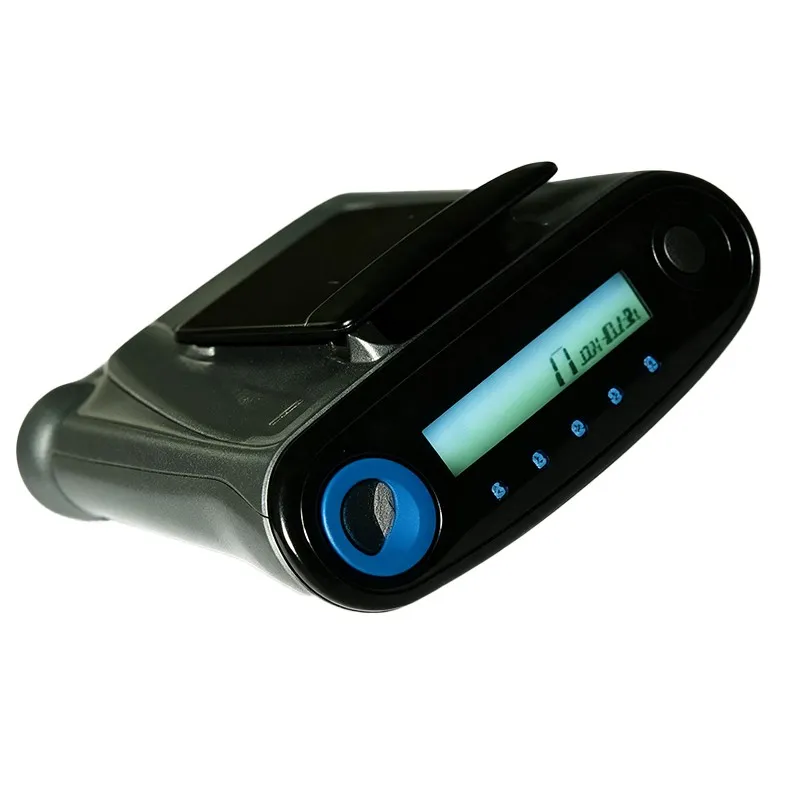

RAD60 Personal Dosimeter Alarm

The Rados RAD-60 personal alarm dosimeter is a precise radiation measurement instrument that reliably detects and records radiation, ensuring the user's safety. When used alone, it is suitable for a wide range of daily radiation monitoring purposes. Programmable parameters allow it to operate in extreme environmental conditions, making the RAD-60 a unique, versatile, and practical personal dosimeter. The RAD-60 is compact and lightweight, making it easy for users to carry to any location where continuous and reliable recording of cumulative dose is required. An alarm will alert the user when a preset exposure threshold is exceeded.

The RAD-60 offers reliable monitoring results, a wide measurement range, and is more durable and reliable than commonly used ionization chambers, with features such as real-time digital display and user-configurable alarms. Its silica detector-based design makes the dosimeter compact and small; other design features effectively eliminate external interference such as electric shock and RFI.

The RAD-60 personal dosimeter is a precision instrument that accurately measures radiation dose to ensure that the radiation dose to irradiated workers is kept at a reasonably low level. The dose rate or cumulative dose value is displayed on the LCD screen. The energy compensation circuit ensures high accuracy of the instrument. Measurement results are stored in the chip and not lost even after the battery is removed. The RAD-60 personal dosimeter's housing is robust, durable, and splash-proof, made of a smooth, impact-resistant material that is easy to clean, and designed to prevent accidental loss of readings due to mechanical impact or the effects of the radio frequency field.

Main parameters:
1. Detectable radiation types: X-rays, gamma rays
2. Detector type: Energy-compensated silicon dioxide detector
3. Measurement range:
Dose: 1μSv - 9.99Sv or 0.1mrem - 999rem;
Dose rate: 5μSv/h - 3Sv/h or 0.5mrem/h - 300rem/h;
Scale: Better than ±5%, HP(10), Cs137, 662keV, 2mSv/h
4. Energy response: Hp(10), 60keV–3MeV, better than ±25%; better than ±35% within 6MeV

5. Measurement accuracy: ±5% (Cs137, 662KeV dose rate at 2mSv/h)

6. Linearity: better than ±15% within 3Sv/h (300rem/h)

7. Alarm threshold:
Dose rate: continuously adjustable between 1µSv/h and 1Sv/h
Cumulative dose: continuously adjustable between 1µSv/h and 10Sv/h

8. Alarms for cumulative dose and dose rate exceeding threshold, low battery, operating timeout, and detector failure are provided via sound (buzzer), light (LED), and LCD indicators. Different cumulative dose increment prompt sounds can be set (sound intensity >80 dB, at 30cm distance). 9. Low voltage indicator: Displays a low voltage symbol when battery voltage ≤ 3.1±0.1V.

10. Operating temperature range: -20 to +50℃.

11. Operating humidity: 10%-90% (relative humidity), -20 to +70℃.

12. Dimensions: 78×67×22m

13. Weight: 80g including battery.

14. Battery type: 1.5V AAA alkaline battery.
